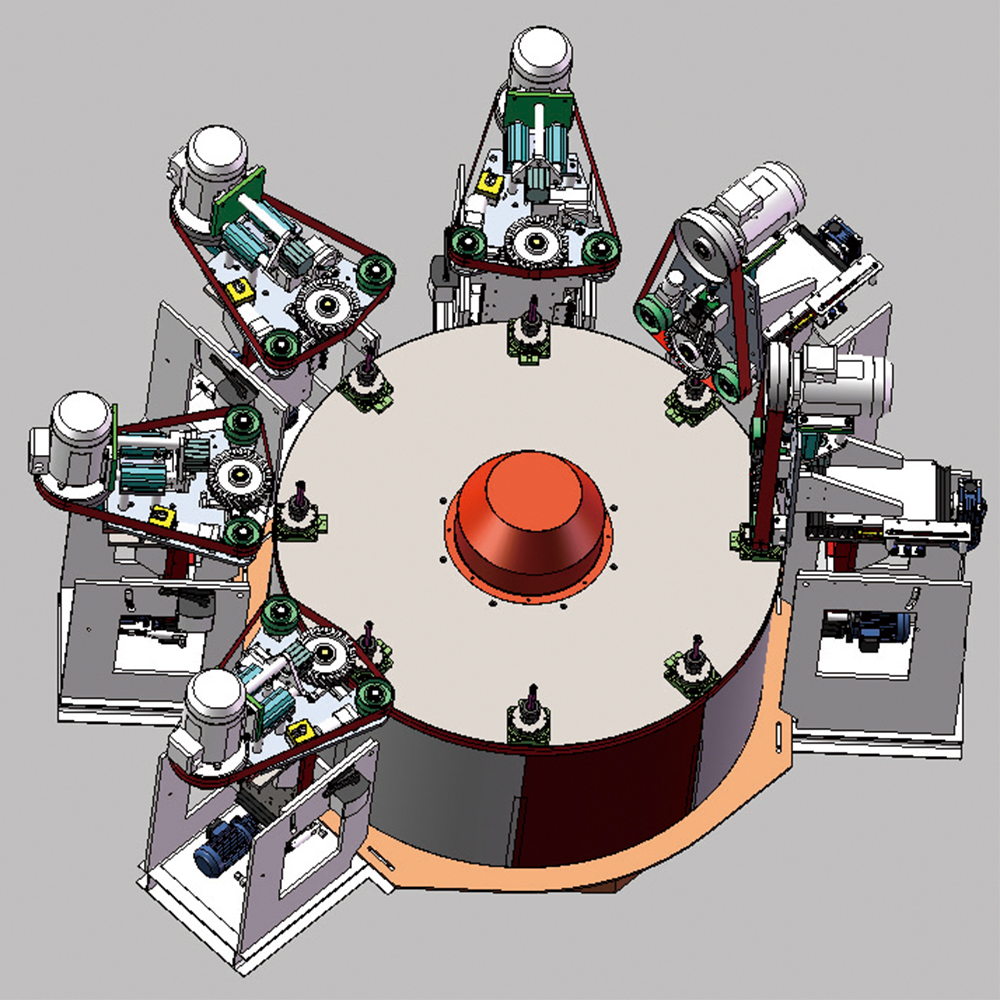

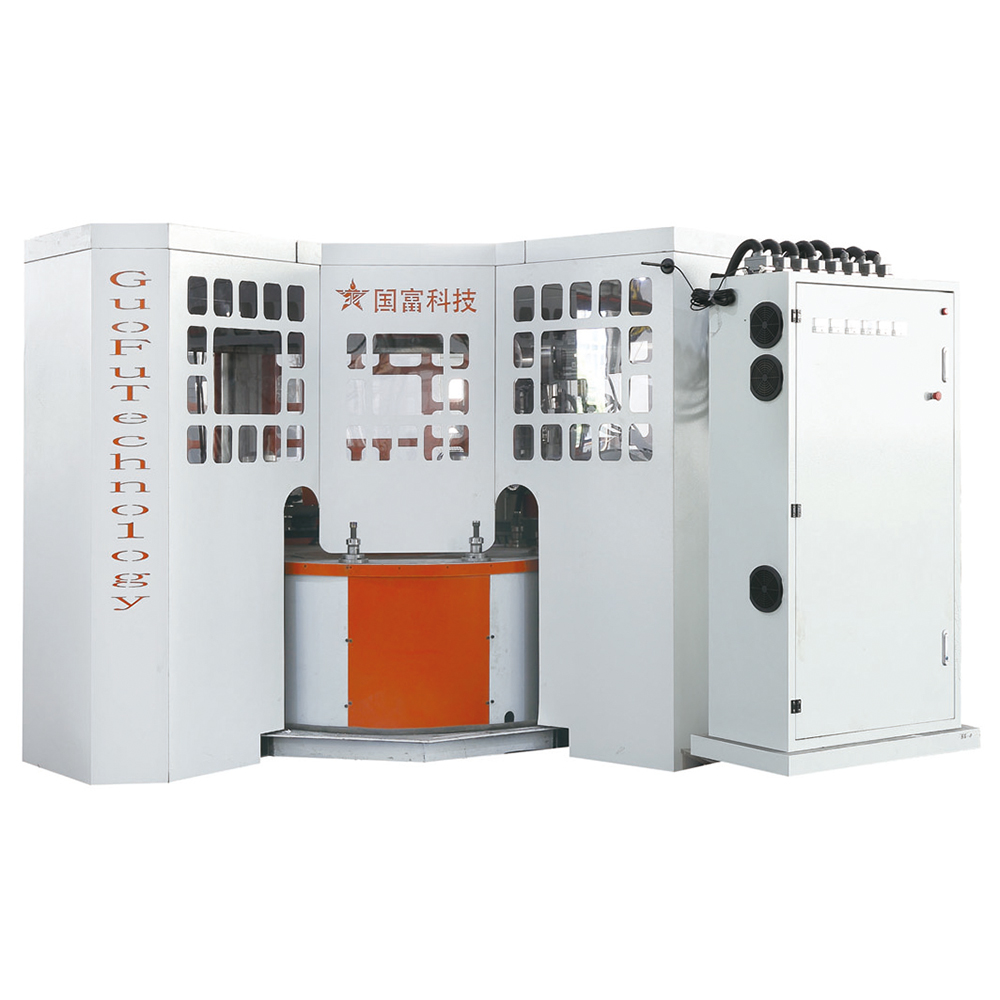

SIX SETS OF DISC SANDER

The disk adopts the principle of divider,the movement of the disk can be intermittent operation according to the process requirements,and is  equipped with a frequency converter to control the speed of the disk, depending on the process requirements of the product,the product  can  be  coarse  throw,fine  throw,and  other  flow  type  operations, only one worker loading and unloading parts,simple and convenient  operation,the operator does not have too high technical requirements. The machine is also equipped with fault alarm function,which can automatically display the cause of the fault to protect the normal operation of the equipment.

Category:
名称Name 单位Unit 规格Specifications
圆盘转动动力 Disk rotation force KW 0.75
主电机 Main motor KW 2.2
工件夹具动力 Fixture power RV50配0.37速比10RV50 with 0.37 speed ratio 10
机头上下电机 Head up and down motor RV40配0.37电机速比30RV40 with 0.37 motor spoed ratio of 30
机头进退电机 Nose motor RV40配0.37电机速比60RV40with 0.37 motor speed ratio 60
主电机变频调速 Main motor frequency control KW 2.2/4
砂带规格 Belt specification mm 2100×50
工装夹具 fixture 8
设备外形尺寸 Overall imensions of gquipment mm 3500×3000×2000
圆盘直径 Disc diameter mm φ1600
工件轴中心直径 Workpiece shatt center diameter mm ①1520
砂轮主轴转速 Grinding wheel spindle speed r/min 1460
砂轮直径 Wheel diameter mm φ200
橡胶轮规格及硬度 Rubber wheel specifications and hardness mm φ250*50厚/60度
使用电源 Use power Hz 380V、50(三相Three phase)
使用气源 Use air source MPa 0.4-0.8压缩空气Compressed air
设备总功率 Total power of equipment KG 约20
