| 名称Name | 单位Unit | 规格Specifications | |
| 机床外形尺寸 | Machine outine dimension | mm | 4400×3400×2900 |
| 功率 | power | KW | 35 |
| 额定电压 | Rated voltage | V | 380 |
| 抛光轮最大尺寸 | Maximum size of polishing wheel | mm | 600 |
| 抛光轮最小尺寸 | Minimum size of polishing wheel | mm | 400 |
| X轴行程 | X-axis travel | mm | 1100 |
| Y轴行程 | Y-axis travel | mm | 900 |
| Z轴行程 | Z-axis travel | mm | 700 |
| U轴行程 | U-axis travel | mm | ±60° |
| V轴行程 | V-axis travel | mm | ±360° |
| W轴行程 | W-axis travel | mm | ±360° |
| X轴最大速度 | Maximum velocity on the X-axis | m/min | 20 |
| Y轴最大速度 | Maximum velocity on the Y axis | m/min | 20 |
| Z轴最大速度 | Z-axis maximum velocity | m/min | 20 |
| U轴最大速度 | U-axis maximum speed | sec | 30° |
| V轴最大速度 | V-axis maximum speed | sec | 30° |
| W轴最大速度 | Waxis maximum speed | sec | 30° |

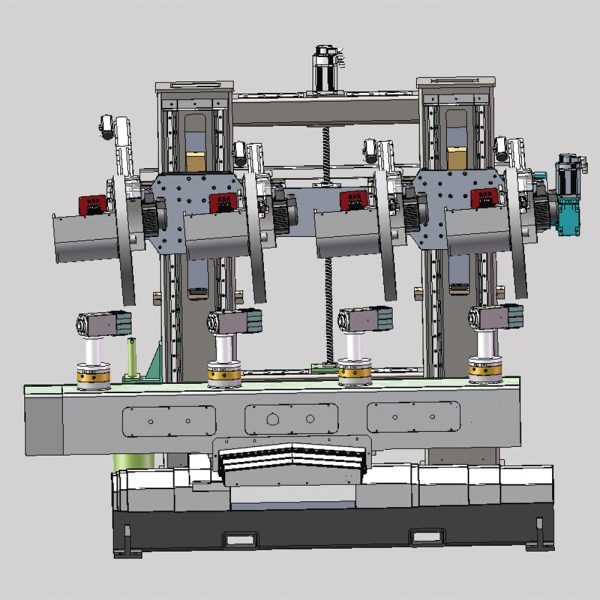

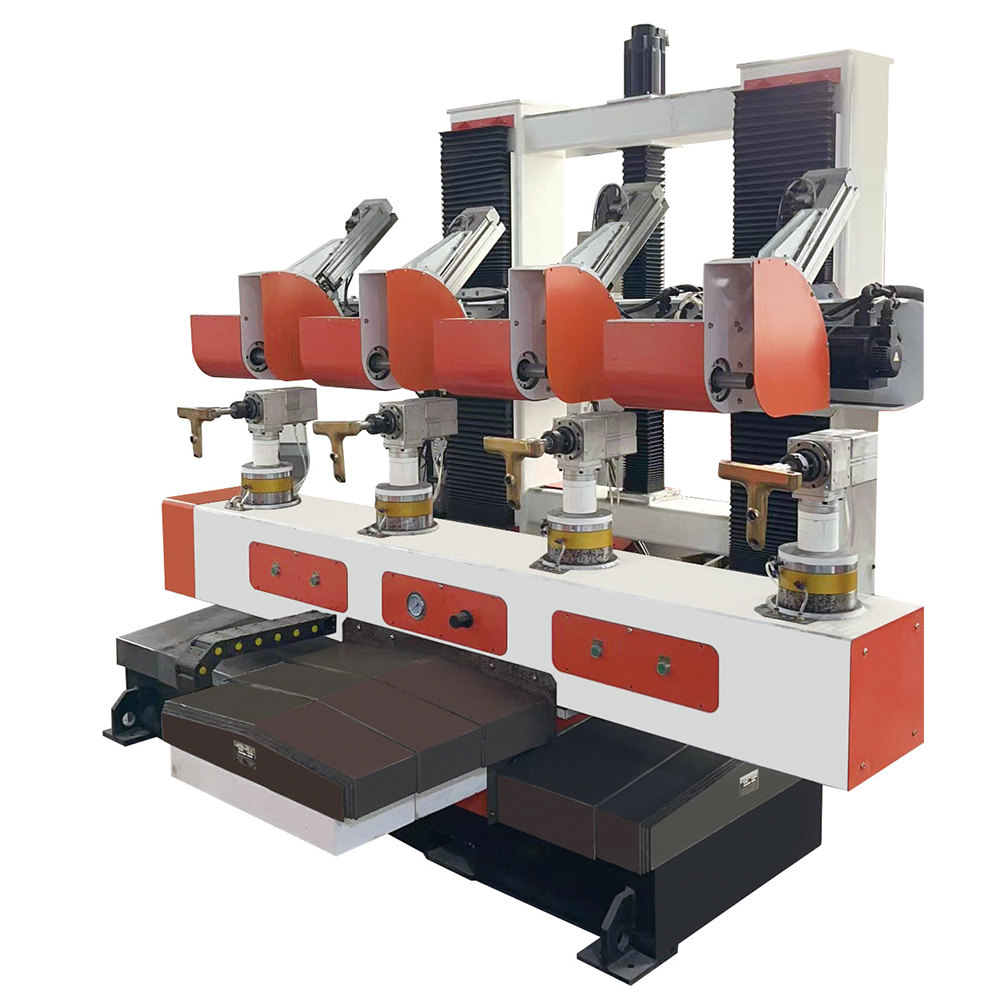

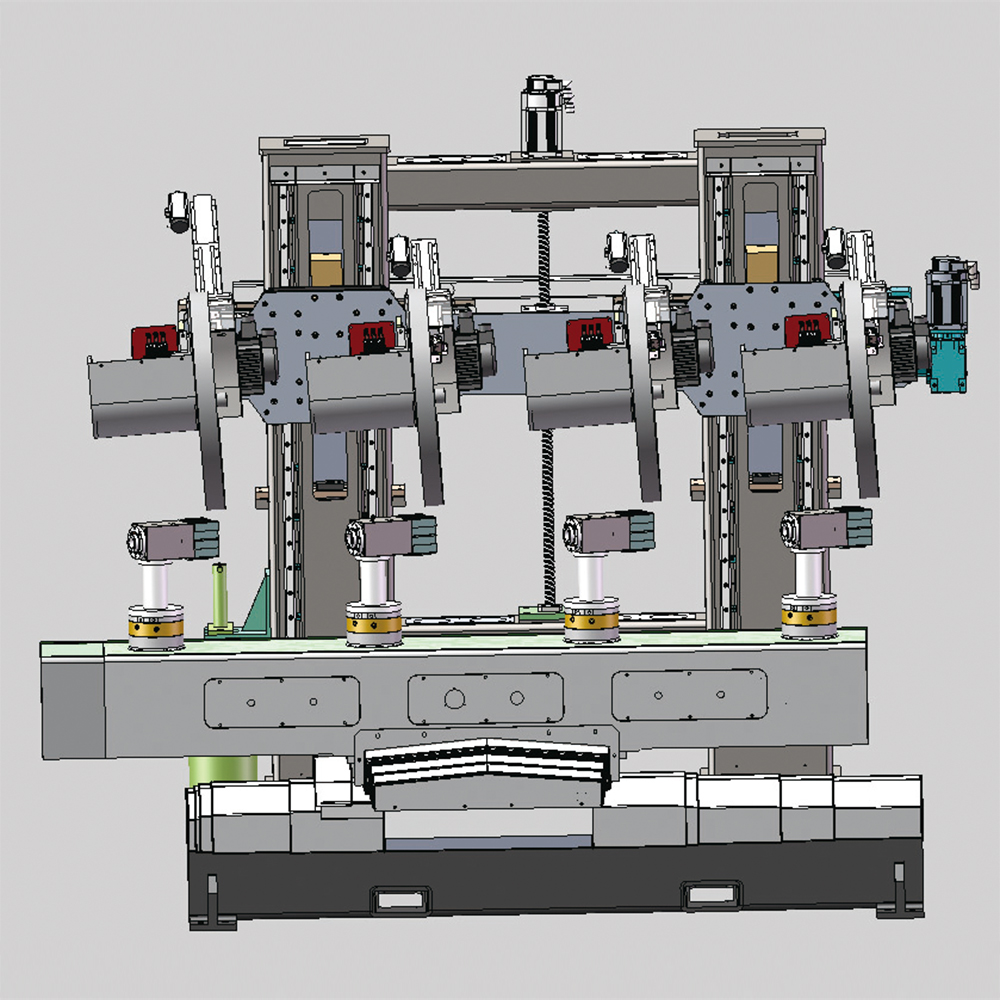

SIX AXIS CLEANING MACHINE
1.This machine is a special six-axis muti-station cleaning machine,six degrees of freedom,multi-station operation at the same time,each station can be installed two different cloth widely used in sanitary ware,door control,auto parts neighborhood products polishing.wheels,flexible and efficient,
2.The control system adopts the control technology of Intelligent Research Institute of Huazhong University of Science and Technology,with stable performance and high control precision.
3.Programming method:handheld calibration,calibration programming,using manual mode to simulate manual polishing and record the track,you can run according to this path.
4.Polishing wheel automatic compensation function:After polishing cloth wheel loss,the system can detect the torque becomes smaller to achieve automatic coordination compensation in all directions.
5.Linear speed compensation:When the outer diameter of the cloth wheel decreases,the system automatically increases the speed of rotation compensation.
6.Wax setting:Solid wax or liquid wax can be selected according to the characteristics of the product,and the wax spraying time and frequency can be set freely.
7.Full digital control,can store 50 kinds of programs,and call at any time.
