| 名称Name | 单位Unit | 规格Specifications | |
| 产品直径范围 | Product diameter range | mm | 0.8-300 |
| 抛光轮直径×内孔 | Polishing wheel diameter x inner hole | mm | 450×50 |
| 主电机功率 | Main motor power | KW | 7.5 |
| 调直轮数量 | Number of straightening wheels | 对 | 2 |
| 抛光轮转速 | Polishing wheel speed | r/min | 1440 |
| 设备总功率 | Total power of quipment | KW | 40 |
| 使用耗材 | Use consumables | 布轮，麻轮，千叶轮等Cloth wheel,hemp wheei,thousand impeller,etc | |
| 机床外形尺寸 | Machine outline dimension | mm | 4800×1300×2000 |
| 使用电源 | Use power | Hz | 380V、50(三相Three phase) |
| 使用气源 | Use air source | MPa | 0.4-0.8压缩空气Compressed air |

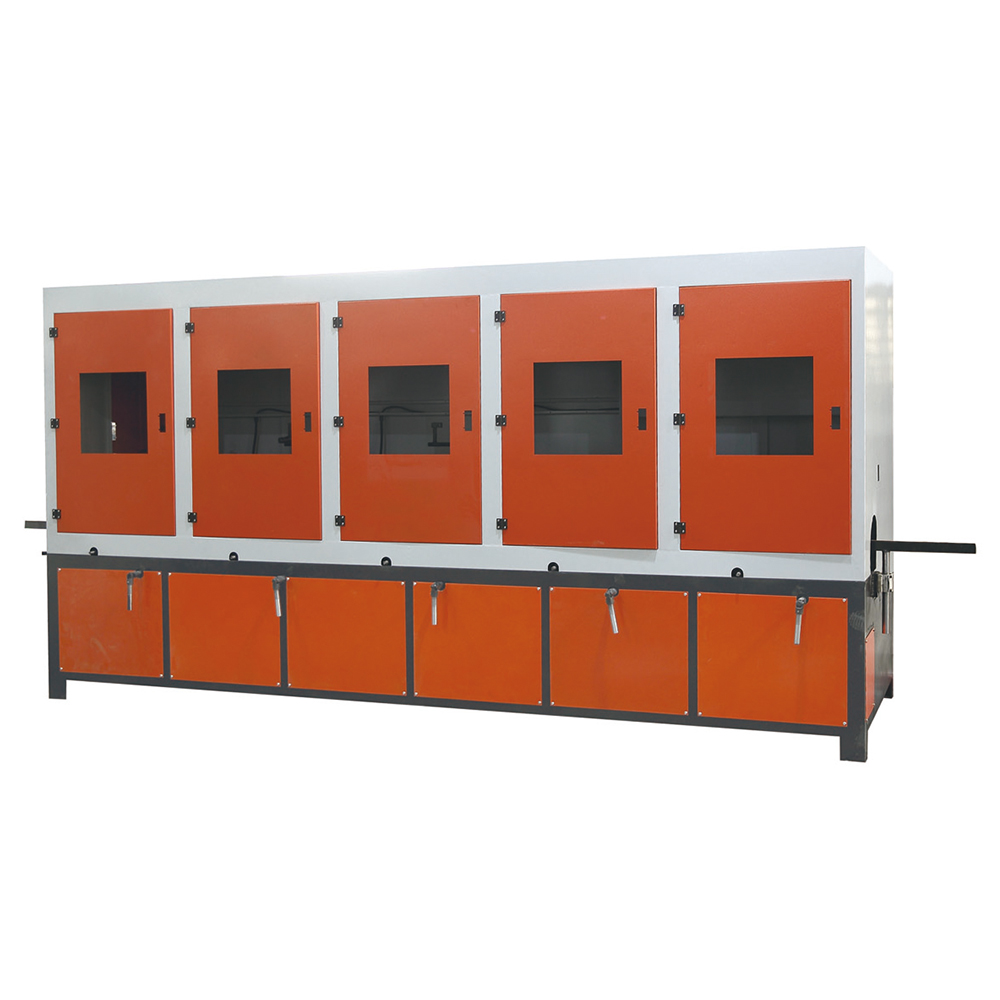

FIVE GROUPS OF ROUND TUBE AUTOMATIC POLISHING MACHINE
1.The machine tool is made of whole steel welding,reasonable structure,stable performance and simple operation;
2.Suitable for all kinds of linear round rod surface polishing,grinding, sanding,drawing and other round processing,can be customized according to customer production needs of multiple groups of
polishing machine.
