| 本机型是一种适应于 This model is suitable | 正方形，长方形，圆形的机型设备for square,rectangular,circular model equipment |
| 上料方式 | 人工上下产品 |
| Loading method | Manual loading and unloading |
| 动作原理
Principle of action |

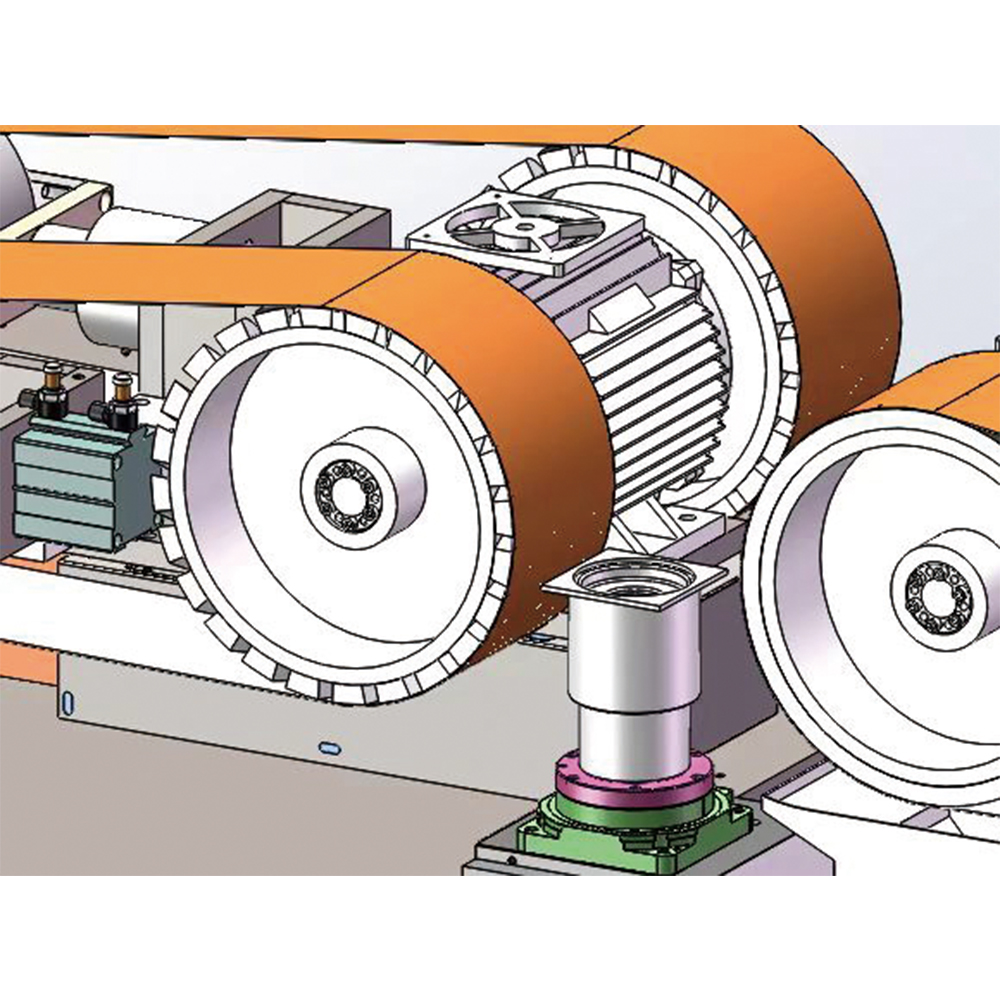

将 产 品 参 数 调 试 完 ， 按 自 动 启 动 ， 产 品 进 退 滑 台 进 至 抛 边 第 一 位 置 进 行 粗 抛 ， 粗 抛 完 成 后 两 边 机 头 回 到 复 位点，旋转90度继续粗抛，粗抛完成后走到细抛位置以粗抛工序进行，产品回到装卸位置。Ater dobugping the product parameters,press the automatic start,the product forward and backward slide into the frst position of the
throwing side for rough throwing.aftor the completion of the rough throwing,the two heads retum to the reset polnt,rotate 90 degrees to continue the rough throwing.after the complation of the rough throwing to the fine throwing position for rough throwing process,the product retums to the loading and unloading position. |
| 产品夹具Product fixture | 具有膨胀功能，当工装到达固定位置自动松开产品，过后自动夹紧产品With the expansion function,when the tooling reaches the fixed position,the product is automatically released,and then the product is automatically clamped |
| 操控方式 | 配电柜操控触摸屏使用 |
| Control mode | Power distribution cabinet control touch screen use |
技术参数
| 名称Name | 规格Specifications | ||
| 左右摆动 | Swing from side to side | KW | 伺服Servo 1.5KW |
| 产品进退 | Product advance and retreat | w | 伺服Servo 750W |
| 产品旋转 | Product rotation | w | 伺服400W配中空减速机Servo 400W with hollow reducer |
| 主电机 | Main motor | KW | 4 |
| 主电机变频调速 | Main motor frequency control | KW | 4 |
| 橡胶轮规格及硬度 | Rubber wheel specifications and hardness | mm | φ300*150厚(Thick)/60° |
| 工装夹具 | fixture | 个 | 1 |
| 砂带规格 | Belt specification | mm | 2100×50 |
| 使用电源 | Use power | Hz | 380V、50(三相Three phase) |
| 使用气源 | Use air source | MPa | 0.4-0.8压缩空气Compressed air |
