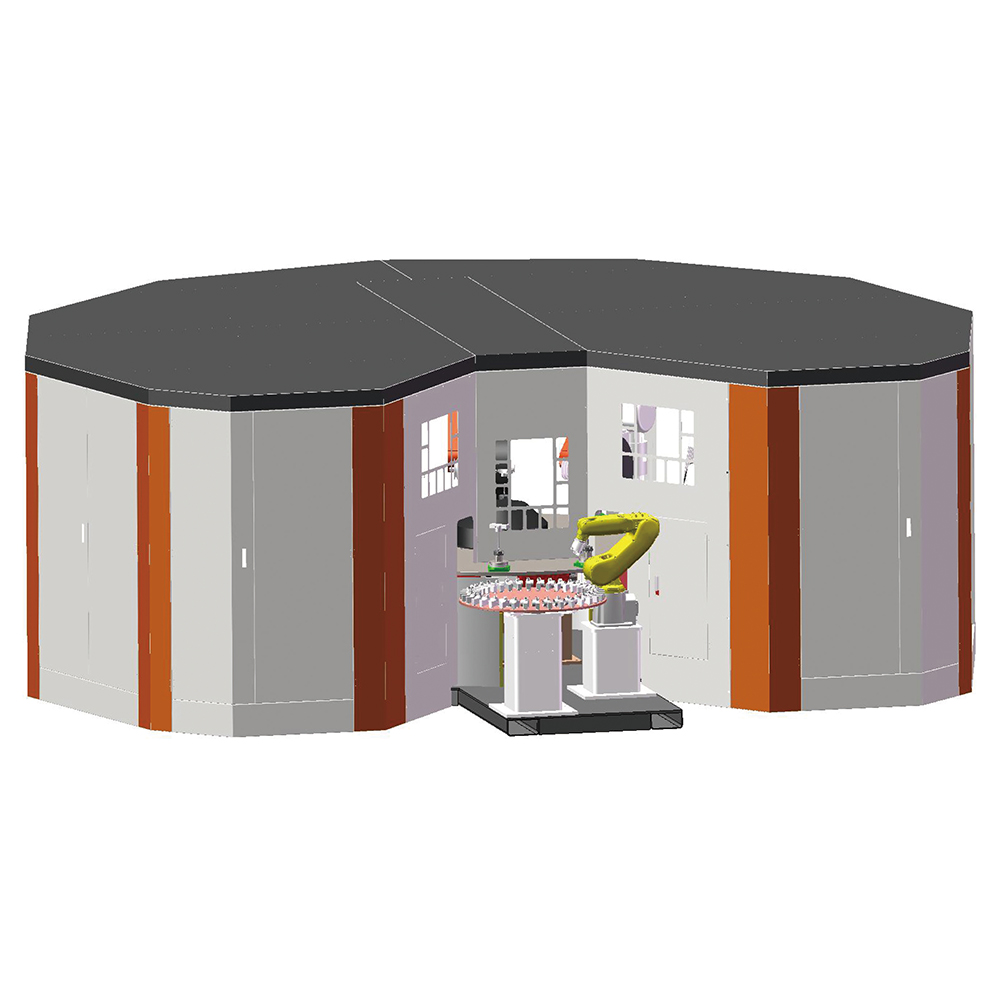

10 SETS OF DISC CLEANING MACHINES

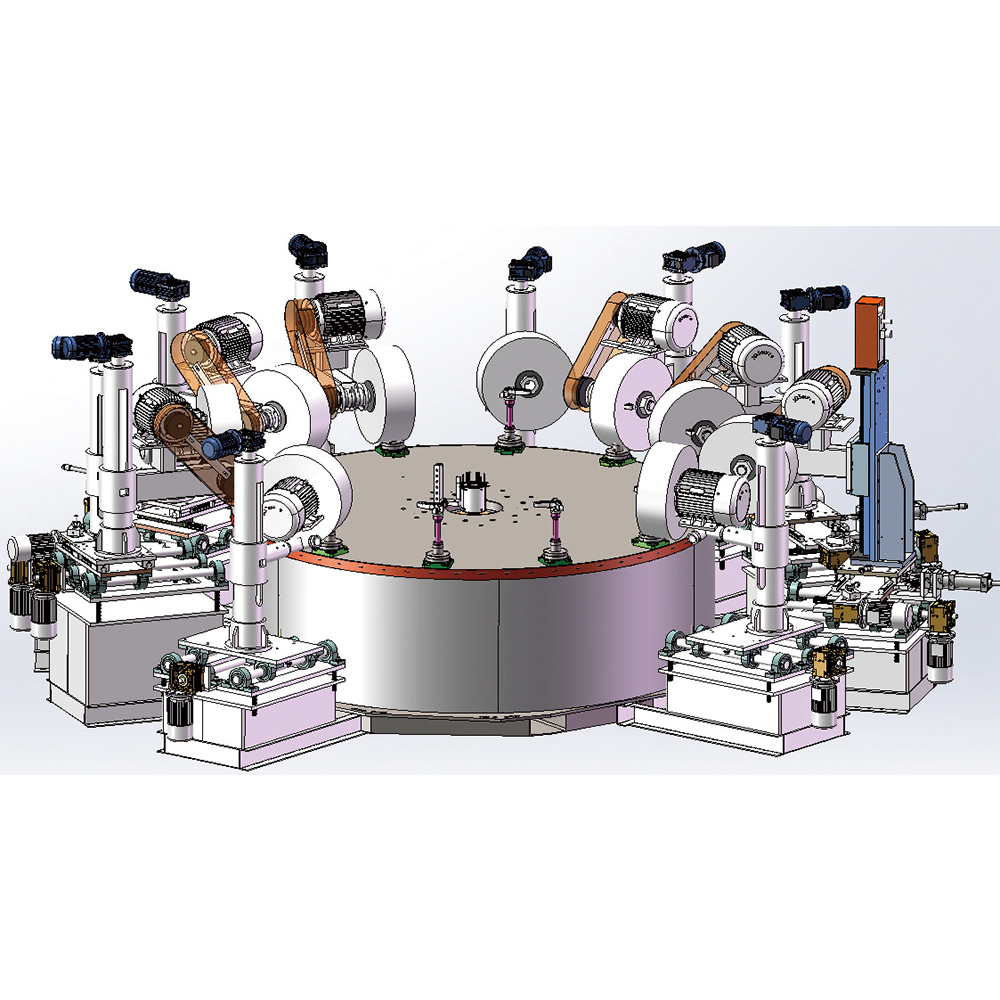

The disk adopts the principle of spliter,the movement of the disk can be operated intermittently according to the process requirements,and is equipped with a frequency converter to control the speed of the disk, depending on the process requirements of the product,the product can be  polished,only  one  worker  to  load  and  unload  the  workpiece,the operation is simple and convenient,and the operator does not have too high technical  requirements.The  machine  is also equipped with fault alarm function,which can automatically display the cause of the faul to protect the nomal operation of the equipment.

Category:
名称Name 单位Unit 规格Specifications
圆盘转动动力 Disk rotation force KW 7.5
进退电机 Advance and retreat machine KW 0.37
升降电机 Elevating motor KW 0.37
主电机功率 Main motor power KW 4
夹具装置 Jig device w 400
工装夹具 fixture 12
变频器 Frequency changer KW 4
抛光轮直径 Diameter of polishíng wheel mm 450×50
抛光轮转速 Polishing wheel speed r/min 1440
使用电源 Use power Hz 380V、50(三相Three phase)
使用气源 Use air source MPa 0.4-0.8压缩空气Compressed air
设备总功率 Total power of equipment KW 140
使用耗材 Use consumables 麻轮,布轮等Hemp whel,cloth whel,etc
机床外形尺寸 Machine outine dimension mm 6000*5000*2200
